کد ادیتور هشبرد ماینرشناسه کالا: 6189

کد ادیتور هش برد ماینر افلاین

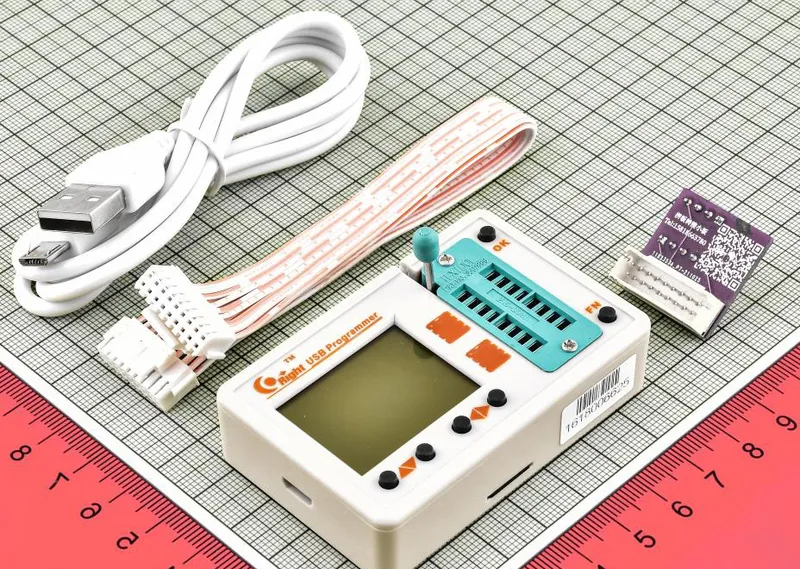

Hashboard code editor - coding tool AT24C02

Keys and interface description

Start operation: read data

First click the "NF" button to enter the function menu

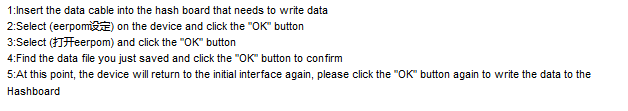

Start operation: write data

First click the "NF" button to enter the function menu

Complete data writing

After clicking the "OK" button, the prompt tone of the device is once, indicating that the writing is successful. The prompt tone is twice, indicating that the writing failed.

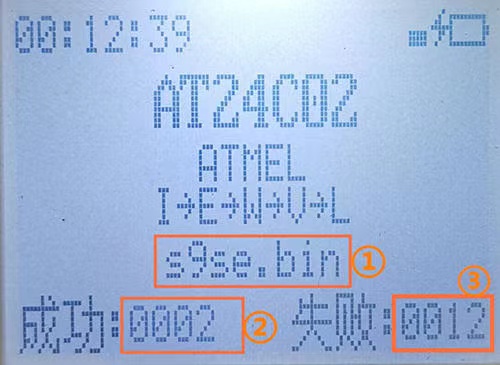

Schematic diagram of results:

1: File name

2: Number of successful writes

3: Number of write failures
